Description
The S series represents the “core product” of SMIPACK range and can be used for industrial applications, providing quite a high output. The S series of L-sealing hood packers includes four models for outputs ranging up to 900 packs/hour.
Features

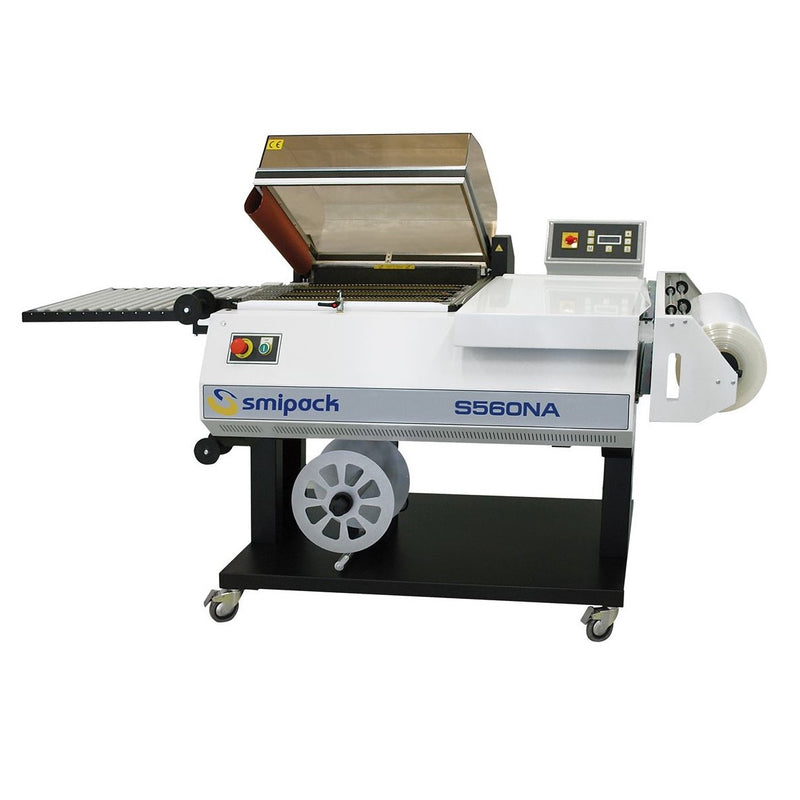

This model, the S560NA has the following characteristics:
- Sealing and shrinking in one operation
- PTFE-coated sealing blade
- Air cooling of the machine frame
- Closed-circuit liquid cooling of the sealing bars
- Viewer of the coolant level
- Quick adjustment of the packaging plate height by means of an external crank
- Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
- Emergency button
- Automatic hood release
- Automatic pack discharge by means of a motorized conveyor
- Reduced power consumption
- Compliance with CE regulations
- Flextron® control system equipped with:
1. alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays, that allow a simple and precise control of all the machine operations, such as:
- machine status
- number of packs produced by an electronic pack counter
- real-time production
- adjustment of the sealing temperature
- adjustment of the hood opening delay
- adjustment of the shrinking delay
- adjustment of the shrinking time
- adjustment of the shrinking chamber temperature
- pack discharge speed
- automatic hood closing and re-opening, motorized and managed by Inverter
- possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
- troubleshooting
2. Modular power section, separated from the control panel and characterized by:
- longer-lasting solid state relays providing easier maintenance
- in case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
Specifications
- Power supply: 220 - 240 V; 1PH - N - PE; 50/60 Hz
- Installed power: 3740 W
- Sealing bar: 560 x 430 mm
- Maximum pack height: 260 mm
- Average output: up to 900 pph (Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.)
- Maximum size of film reel: 600mm width - 300 mm diameter
- Machine size: 2010 x 790 mm x 1115 mm
- Machine net weight: 156 Kg
- Usable Films: Pvc, Polyolefins up to 30 microns
Videos
Packaging of:
- Shampoo twin pack
- Carton boxes
- Bakery products
This is a custom order item which will be ordered for you from our supplier. The options of each machine change slightly depending on your individual needs, therefore, we are unable to publish a price or allow direct online orders. Please contact us and we will guide you step by step to help you with the ordering process according to your requirements.
